AIR CUP LIFT SYSTEM

A perfect combination of air ride and coilovers. With air cup suspension, you keep the ride quality and performance of your coilovers and have the ability to raise your car with the push of a button. A great system for show, track, drift, or daily-driven cars.

HOW DOES IT WORK?

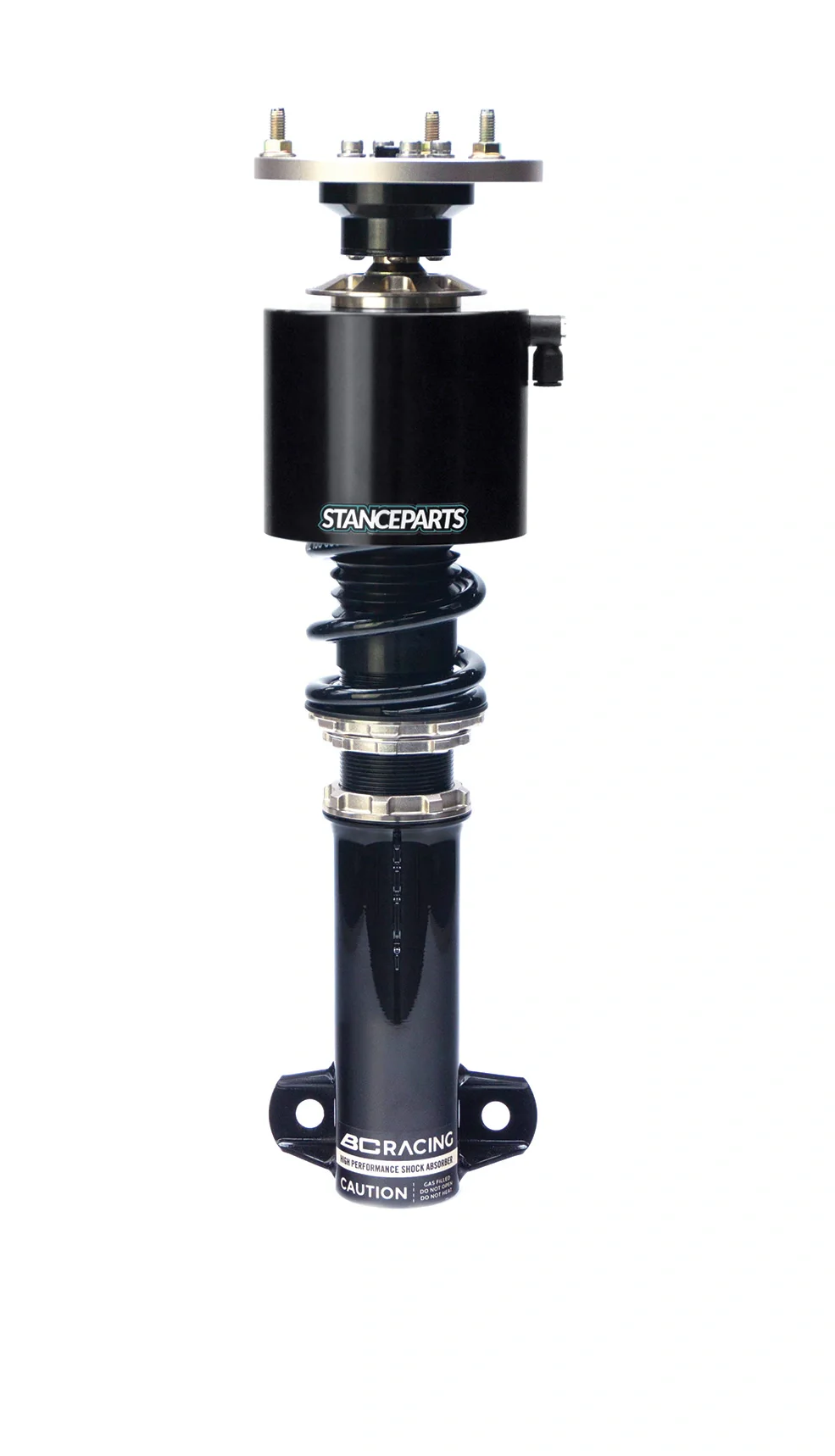

It is an air cylinder on top of your coilover. Normally, you will drive low, without the cups pressurised. Whenever you need to pass an obstacle, such as a speed bump or a driveway, you can apply pressure to the cups and it will raise your car by 50mm.

UNIVERSAL

The air cup lift system will fit on 90% of any brand of coilovers. Though your coilover must meet a certain dimensional requirement, otherwise, the system will not fit.

The Stanceparts 2-piece Tankless system takes around 4-5 seconds to lift a vehicle. With the addition of two extra air cups required to build a 4-piece Tankless system, this time would be increased to approximately 10 seconds.

This lift time should be considered before purchasing and used in cases where the space required to mount a compressor tank is not preferred or an option for fitment.

This kit includes everything you need to install the air cup lift system:

4 air cups
150psi compressor setup
Wiring harness
2 3-way valve
Pre-wired 16mm LED switch
12-meters airline
3 T-splitters

2-year warranty on the air cups.
1-year warranty on the compressor setup.

***** ATTENTION: IMPORTANT FITMENT NOTES *****

1. Stanceparts air cup kits are universal fitment and not supplied for vehicle-specific models. Always make sure you have enough clearance around the coilovers; the air cups are 120mm in diameter, and the fitting is 17mm. (110mm air cups are available on request at the time of ordering)

2. Vehicles using a rear separate shock and spring, please get in touch with us to confirm if there is a custom cup kit option available for your vehicle.
For these vehicles, where a true type rear coilover has been installed in place of a separate spring and shock damper, an air cup cannot be installed due to clearance problems.

For a guide on how to measure for the Stanceparts cup sizes required, & Installation,
Click Here for STANCEPARTS FITMENT REQUIREMENTS

Shaft diameter:

12.5mm
14mm
15mm
16mm
18mm
20mm
22mm
40mm
44mm
44.5mm
45mm
50mm Custom
53mm Custom

For assistance when ordering, email us at sales@bcracing.com.au.

Stanceparts

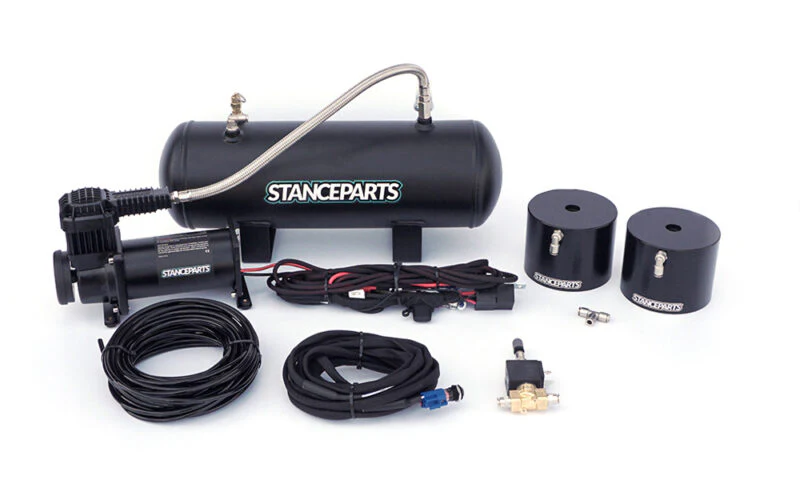

Stanceparts Complete Air Cup Kit (2pce) - Front Kit

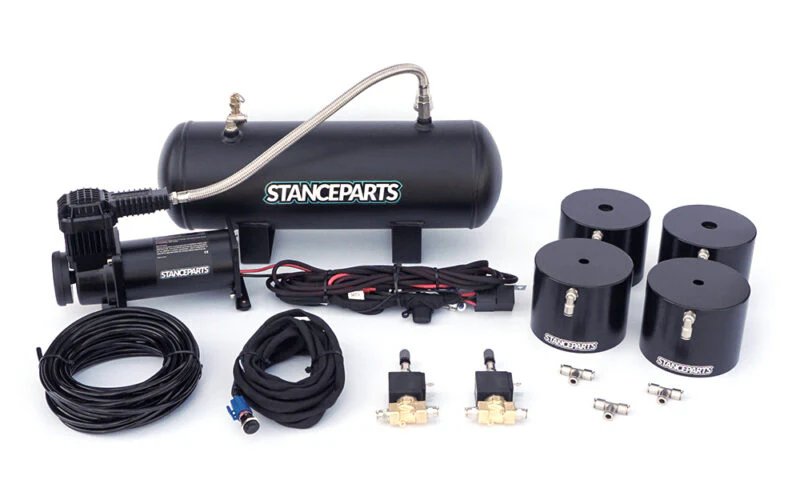

Stanceparts Complete Air Cup Kit (4pce) - Front & Rear

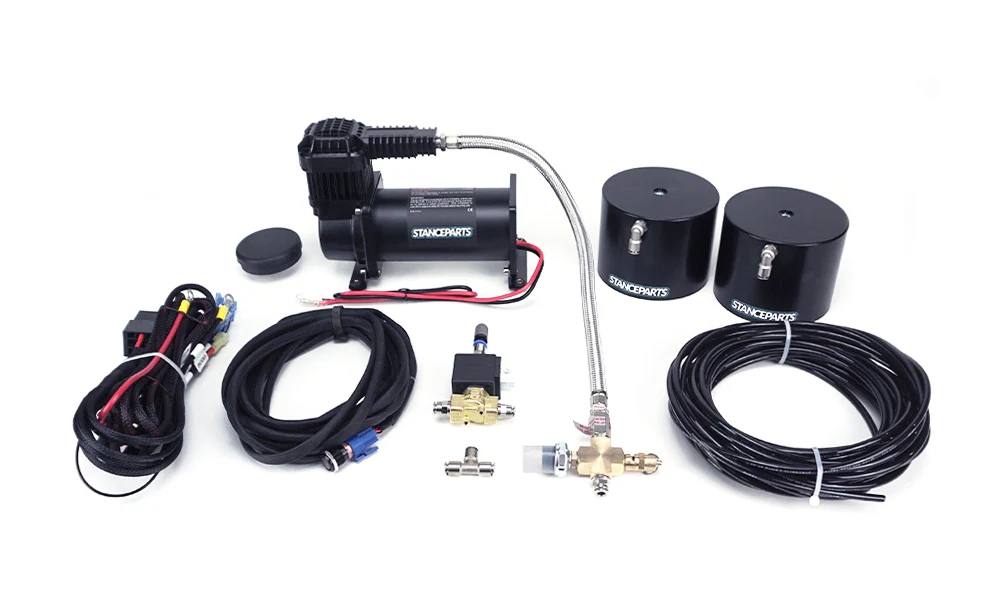

Stanceparts Tankless Air Cup Kit (2pce) - Front Kit

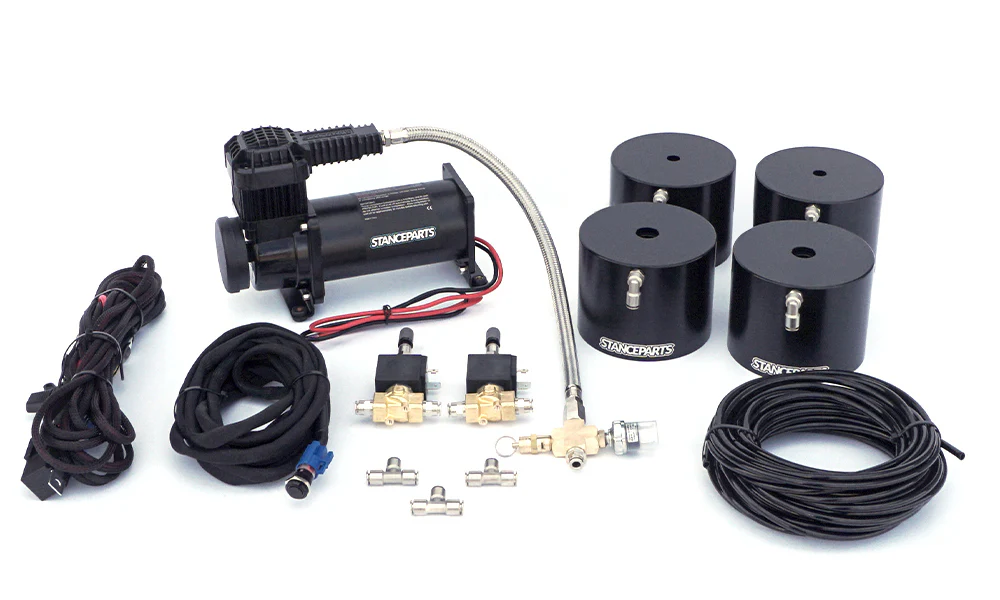

Stanceparts Tankless Complete Air Cup Kit (4pce) - Front & Rear

Stanceparts Tankless Compressor Kit

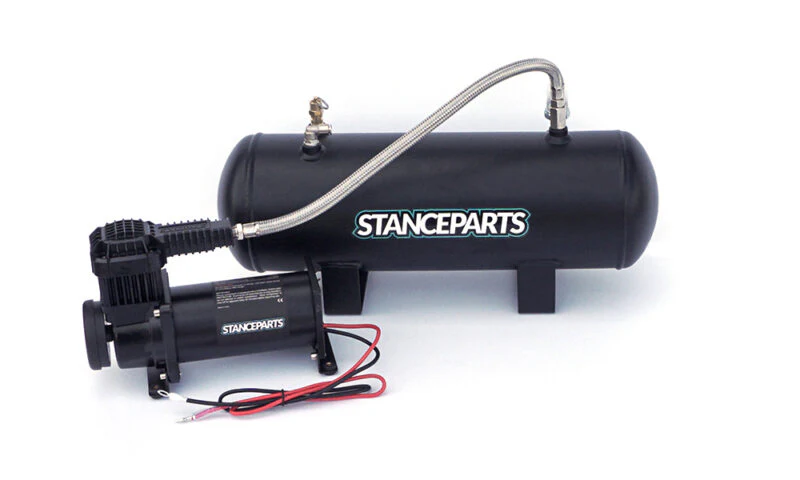

Stanceparts Tank Compressor Kit
